Date Published: December 30th, 2024
Written by: Vania Dian Gunawan, edited by Charlene Octavian
Water is an essential part of human life and the ecosystem. However, water scarcity is becoming a global issue. The growing population and climate change are exacerbating this, as demand increases, and water sources become more scarce, unpredictable, and prone to drought. This impact is especially harsh on the poor and marginalized, affecting health. The need for sustainable water sources can be addressed by utilizing rainwater harvesting.
Rainwater harvesting is the process or technology that involves collecting and purifying runoff from structures or open surfaces for later use, aiming to conserve water. In cities, rain that falls on impermeable surfaces like buildings, roofs, and roads cannot penetrate the soil. Instead, it’s directed into storm sewers, preventing groundwater recharge and increasing the risk of urban flooding.
Rainwater Harvesting could be Utilized for
- Irrigation, including garden and landscape watering
- Non-potable uses such as toilets, washing clothes, refilling swimming pools, ponds, and fountains
- When processed properly, it can be used for drinking water
How does Rainwater Harvesting Work?
There are different types of rainwater harvesting systems, ranging from simple setups with just a pipe and rain barrel for small homes to more complex systems typically installed in larger buildings.
- Rainwater is collected from roof surfaces.
- Gutters capture the rainwater and direct it to a vortex filter, which separates debris by directing the flow around the inside of the filter housing.
- The filtered water is then stored in a tank, which should also be made of non-toxic and non-corrosive materials.
- In some systems, rainwater is combined with water from a deep well, providing a supplementary or more reliable water supply, especially during the dry season.
- Clean water treatment involves filtration and disinfection to produce water that is safe for use.
- Finally, the distribution system, including pipes and pumps, channels the stored water to where it is needed.
Different Methods of Rainwater Harvesting
Rain Barrels
This simple method involves placing a barrel at a gutter downspout to collect rainwater, typically with a capacity of 50 to 100 gallons. It’s easy to implement and doesn’t take up much space, but it often overflows, missing collection opportunities.

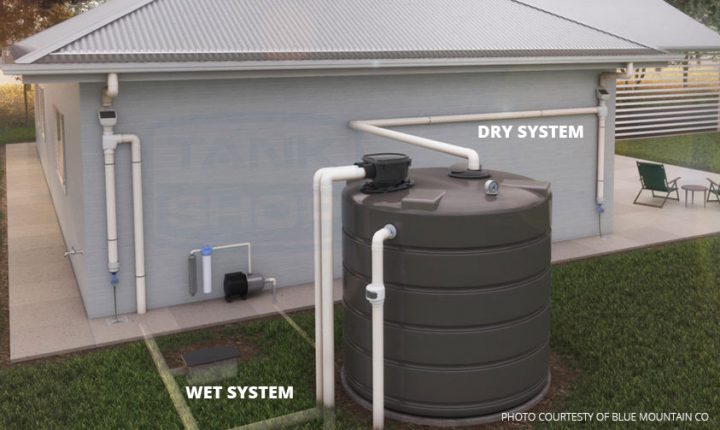

Dry System
A variation of the rain barrel with a larger tank; this system directs water from a gutter into a tank that empties after each rain. It’s cost-effective and easier to maintain but requires the tank to be placed next to the house.
Wet System
This method uses underground pipes to connect multiple gutters, allowing rainwater to fill the pipes and flow into a tank that can be located away from the house. While it collects from large surfaces, it’s more expensive to install and requires specific elevation between gutters and the tank.
Advantages of Rainwater Harvesting
In addition to its various uses, rainwater harvesting offers several key advantages:
- Conserve Water: Decreases reliance on groundwater or municipal water for irrigation, toilets, and washing.
- Reduce Soil Erosion and Prevent Flooding: Captures and directs excess rainwater into storage tanks, which helps minimize surface runoff and reduces the risk of waterlogging.
- Cost-Effective: Utilizes free rainwater, which lowers water bills.
- Ideal for Irrigation: Provides chemical-free water, making it suitable for plants and gardens.
- Recharge Groundwater Aquifers: Uncaptured rainwater can flow into recharge wells and help replenish groundwater supplies and prevent land sinking.
Challenges of Rainwater Harvesting
Rainwater harvesting offers many benefits, but it also comes with its own set of challenges:
- Dependence on Rainfall: The effectiveness of rainwater harvesting relies on the intensity and frequency of rainfall, which can be unpredictable.
- Regular Maintenance: Clear gutters, downspouts, and filters regularly, check the first flush diverter, and inspect for leaks or cracks. Clean gutters every six months and after rain events to prevent clogs.
- Complexity of Installation: While a basic rain barrel is easy to install, expanding the system with collection pipes and larger tanks requires technical skills and experience.
- Proper Installation: It’s crucial to ensure proper installation to prevent issues such as mosquito breeding and waterborne diseases.
While installing rainwater harvesting systems in just one home might appear small-scale, widespread adoption across homes and businesses can greatly reduce the use of groundwater and municipal water. We hope that this practice will become more widespread in the future. Government incentives, subsidies, and education are essential to help people recognize the importance of rainwater harvesting and to make it more accessible and affordable.
What we do at Eco-Mantra
Eco-Mantra is an environmental engineering company dedicated to designing properties that use fewer resources, including water, to minimize environmental impact and achieve long-term financial savings. One of our services is designing rainwater harvesting systems for our clients’ properties. Before creating a design, we assess factors such as rainwater intensity, its flow, and surrounding water sources to determine the most effective solutions and designs.
One of our projects includes installing rainwater harvesting systems at Waterbom Bali. By capturing 3.5 million liters of rainwater annually in the pond and using it as a pool water source with a properly sized balancing tank, they save 8% on overall water consumption. Additionally, installing recharge wells or absorption pits can return 52% of water to the ground.
