Batavia PIK - a Retail Promenade
Jakarta, Java | Land: 35,000 m2 | Building Floor Area: 13,000 m2
Architect: A+A
Landscape Consultant: Grow Little Garden
MEP Consultant: Suntana Sugima
Structural Engineer: PT Deltakoni
Design duration: 2021-2023

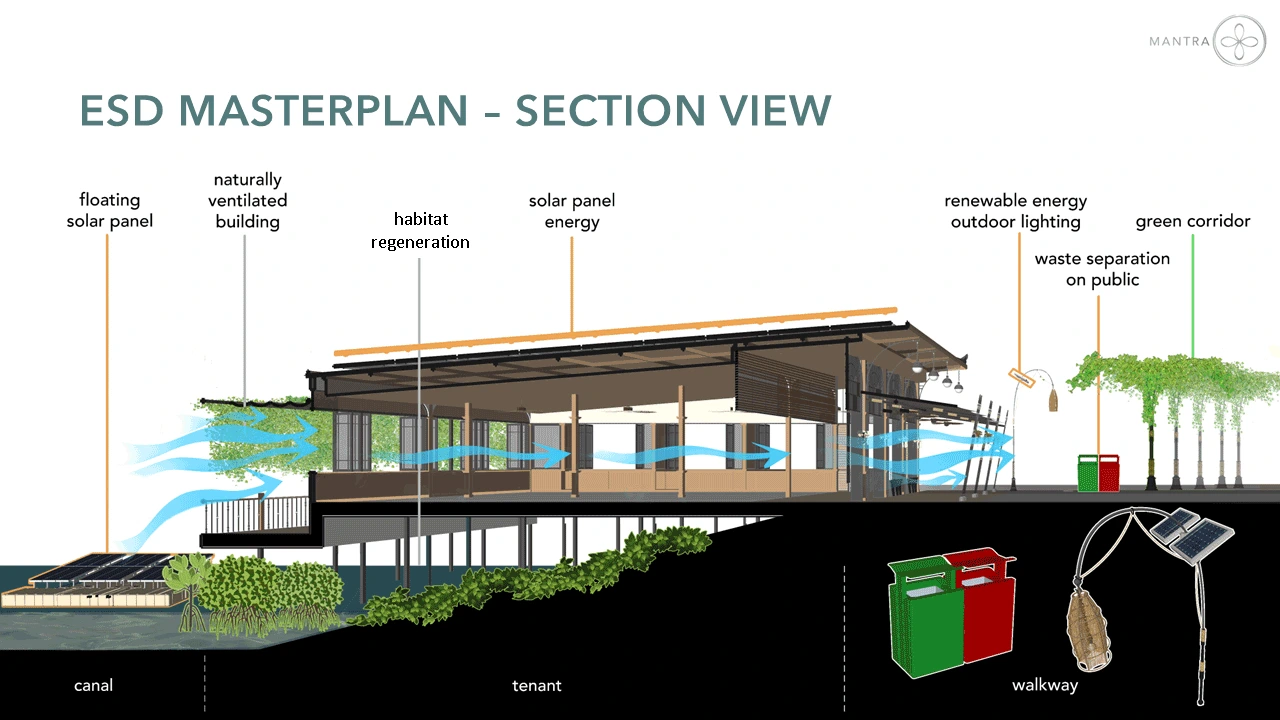

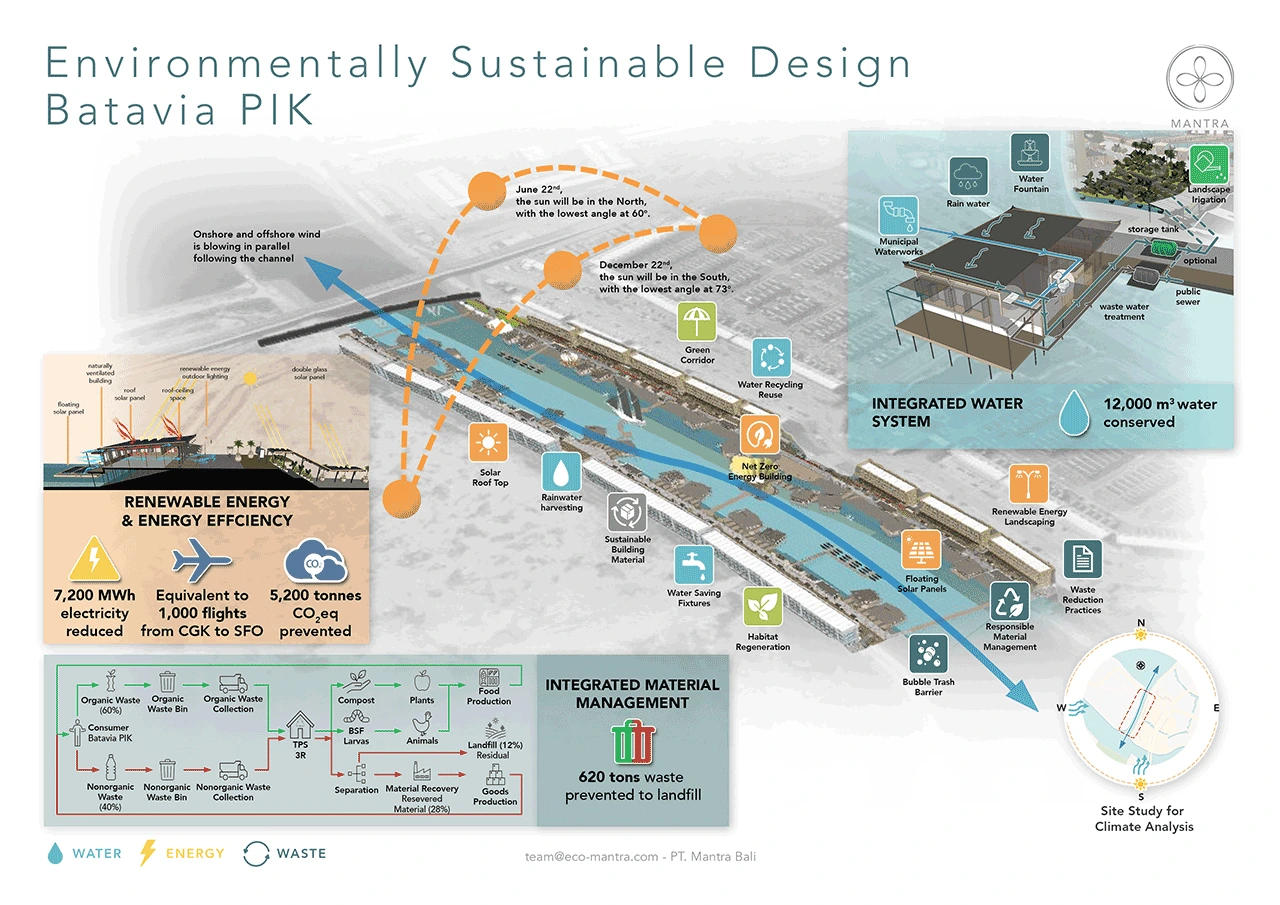

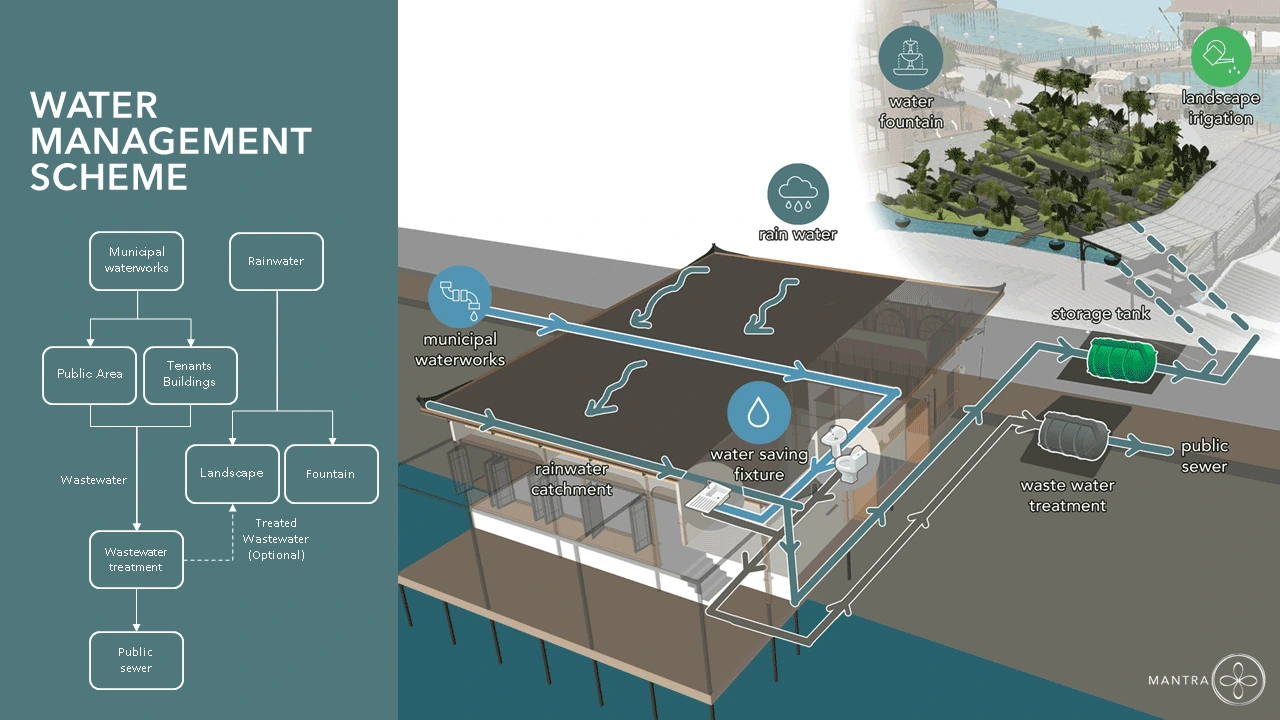

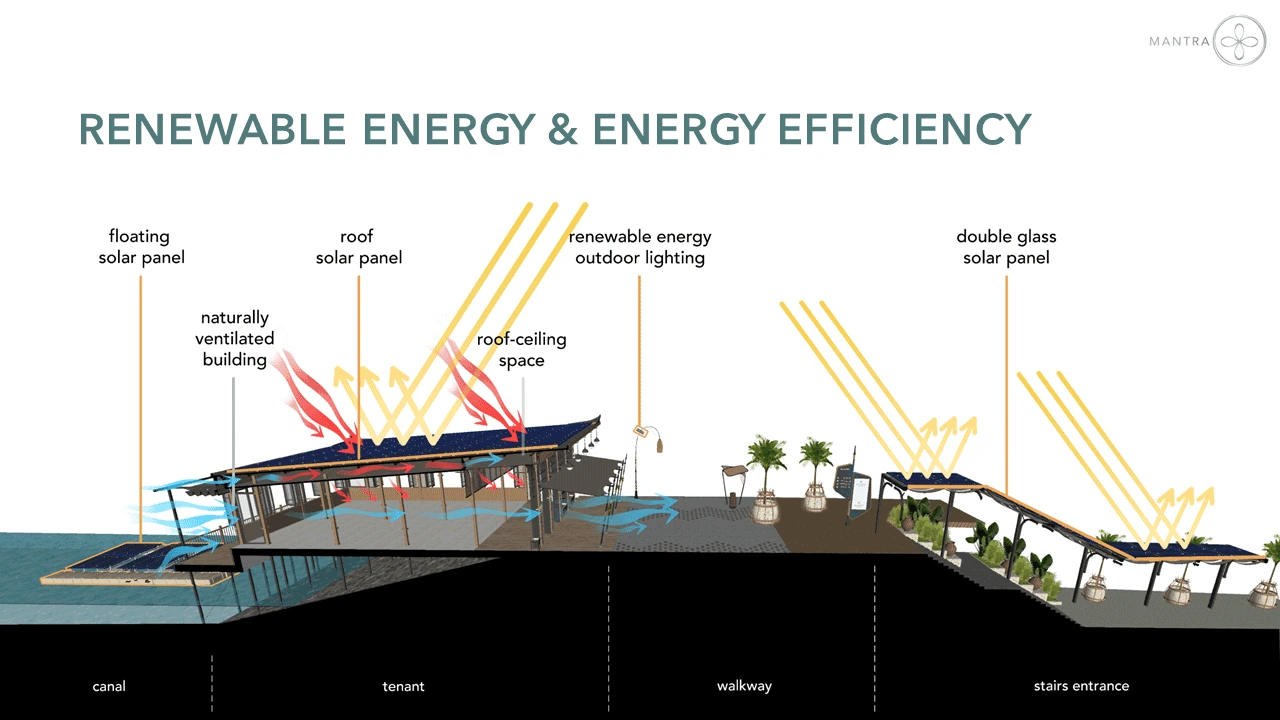

Batavia PIK is a modern seaside destination located in North Jakarta. Spanning 3.5 hectares along the beachside, it features a 1.5 km walkway filled with restaurants, street vendors, and shops for urban consumers. The architecture reflects a tropical colonial style, reflecting Batavia’s old days as a trade hub. Eco-Mantra collaborated on the design, incorporating sustainability concepts such as energy-efficient buildings, carbon capture through mangrove replanting along the flood barriers, and systems for rainwater harvesting and wastewater recycling for irrigation. Working closely with landscape designers, Eco-Mantra also developed the green corridors concept to provide optimal shade, enhancing visitor comfort during hot mid-day hours, potentially increasing revenue for the shops.
Environmentally Sustainable Design Services
Design & Build Sustainably
- ESD Concept
- Schematic Design
Environmental Impact & Savings
Electricity Savings:
20,000,000kWh
Water Savings: 27%
240,000,000L
Waste to Landfill Reduction: 88%
12,200,000kg
Carbon Emission Reduction:
15,380,000kg CO2e
Financial Savings:
2,140,000USD
Savings calculated over a 20 year lifetime.
